Introducing the Coolice/XYGAX DPS-1200 serial power connector board.

Server power supplies are a popular means of powering your RC, UAV (or other) charging needs. Through my own power supply sales I was looking to develope a plug on module which would make connection not only simpler, but easier to remove should a PSU need replacing in the future.

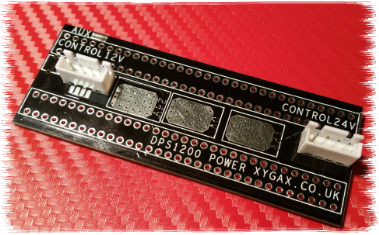

In light of this my electronics master took my very crude strip board prototype and came up with the Coolice/XYGAX DPS-1200 serial power connector board.

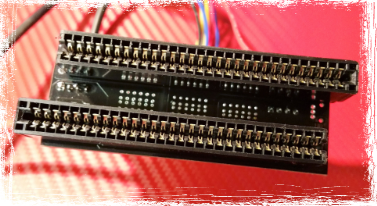

Featuring a straight push on connector system, the Coolice DPS-1200 serial power connector board makes connection to the popular HP DPS-1200FB A power suppleis quick and simple.

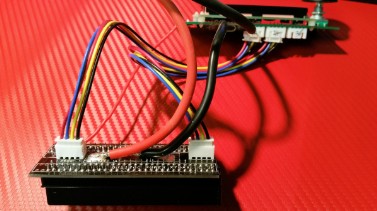

With large solder pads for the Negative, 12 volt and 25 volt connection points, wiring up your seperate power supply or chare case installation is now a simpler affair.

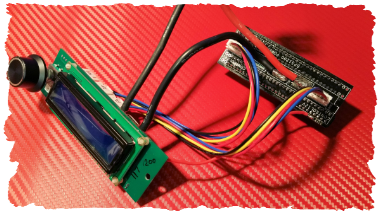

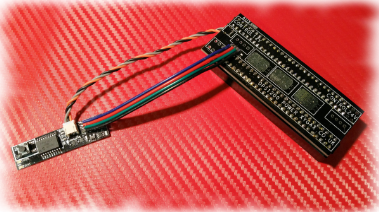

To further simplify matters, we have designed in the right connectors for fast and simple connection to our amazing IceMeter and also made provisions for the solder pads for our entry level protection circuit.
