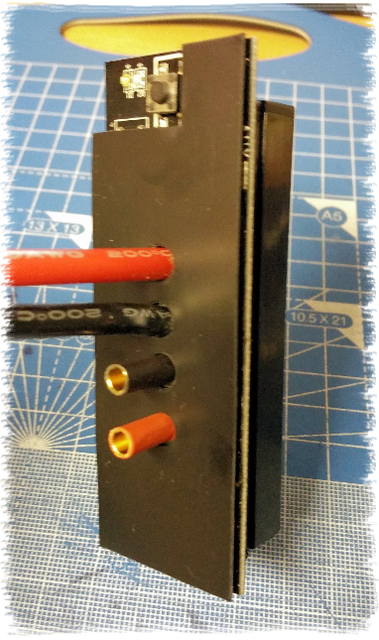

Our Basic Protection Circuit suits the HP DPS-1200FB and similar format PSU's only and utilises a slide on/slide off conenctor arrangement for ease of use.
The customer is still required to DC isolate the upper PSU's output negative terminal from the case to use a pair of PSU's in series.
The customer is still required to DC isolate the upper PSU's output negative terminal from the case to use a pair of PSU's in series.
Price without discount£39.99
This PCB is our new product which covers a range of applications depending on what type of power PCB and rectifier/power supply it is connected to.
This controller can work with the Eltek & Huawei Canbus controlled rectifiers, with other makes being added in the future. It will then allow voltage and current programming, along with wireless monitoring via WiFi as an access point or connected to your home/office WiFi.
This control board is also the replacement for our previous server power power supply protection circuit, the IceMeter.

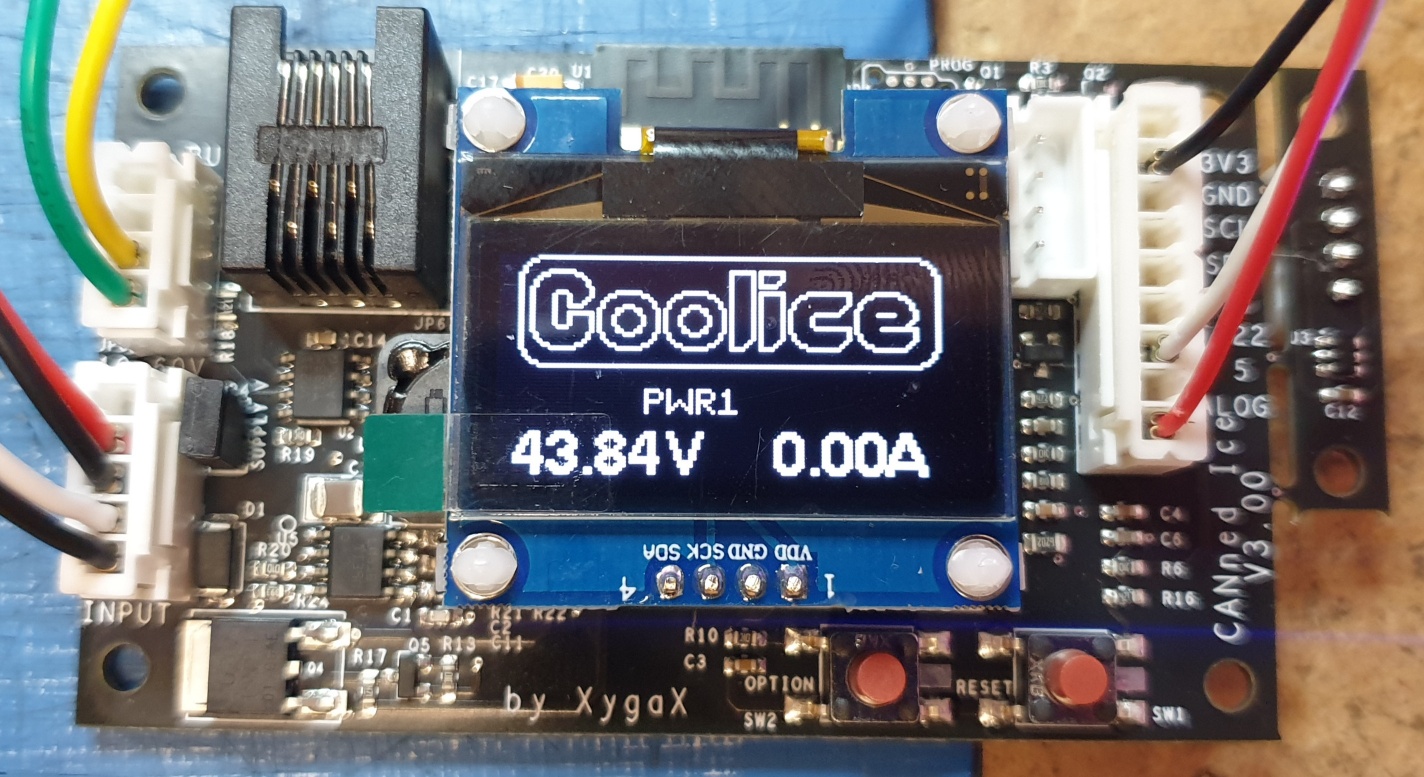

The IceMeter 2 uses the same great controller PCB as our Canbus rectifer programmer, auto configurinng itself to work with the Eltek, Huawei or HP commonslot or Flex Slot server supplies.
Seen here with the 1.3" OLED display soldered direct to the PCB, we can remote wire this and also have a slightly larger screen available at extra cost also. I have added the larger LCD display as a separate upgrade in the shop.
Pair this with a power connector board, in either side by side or back to back configuration and you have the series linked PSU protection for your iCharger DUO or other charger setup.
Or add on an Eltek Power PCB and you're good to go with your rectifier.
This controller can work with the Eltek & Huawei Canbus controlled rectifiers, with other makes being added in the future. It will then allow voltage and current programming, along with wireless monitoring via WiFi as an access point or connected to your home/office WiFi.
This control board is also the replacement for our previous server power power supply protection circuit, the IceMeter.
The IceMeter 2 uses the same great controller PCB as our Canbus rectifer programmer, auto configurinng itself to work with the Eltek, Huawei or HP commonslot or Flex Slot server supplies.
Seen here with the 1.3" OLED display soldered direct to the PCB, we can remote wire this and also have a slightly larger screen available at extra cost also. I have added the larger LCD display as a separate upgrade in the shop.
Pair this with a power connector board, in either side by side or back to back configuration and you have the series linked PSU protection for your iCharger DUO or other charger setup.
Or add on an Eltek Power PCB and you're good to go with your rectifier.
Price without discount£60.00

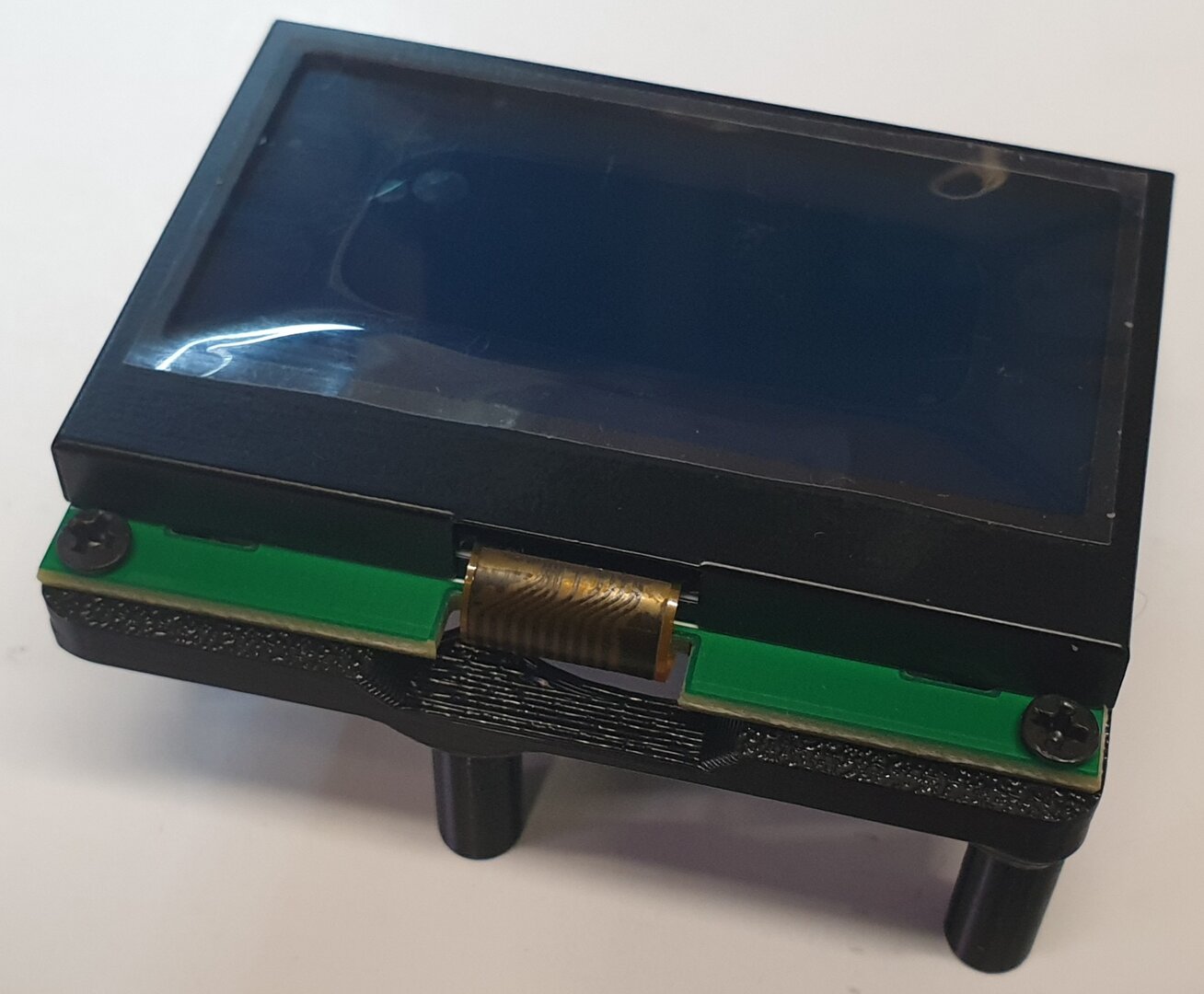

Want a bigger screen than the stock 1.3" OLED that comes as standard with our CANnedIce controller?
Then just add this item to your shopping cart and we will supply this larger LCD screen instead.
Available again mounted to the main PCB via a 3D printed holder, or on a short extension wire.
Please note this item is the LCD only to compliment a CANnedIce order, it is not currently sold separately. Existing CANnedIce V3 owners can contact me if they would like to upgrade to this screen.
Then just add this item to your shopping cart and we will supply this larger LCD screen instead.
Available again mounted to the main PCB via a 3D printed holder, or on a short extension wire.
Please note this item is the LCD only to compliment a CANnedIce order, it is not currently sold separately. Existing CANnedIce V3 owners can contact me if they would like to upgrade to this screen.
Price without discount£8.00

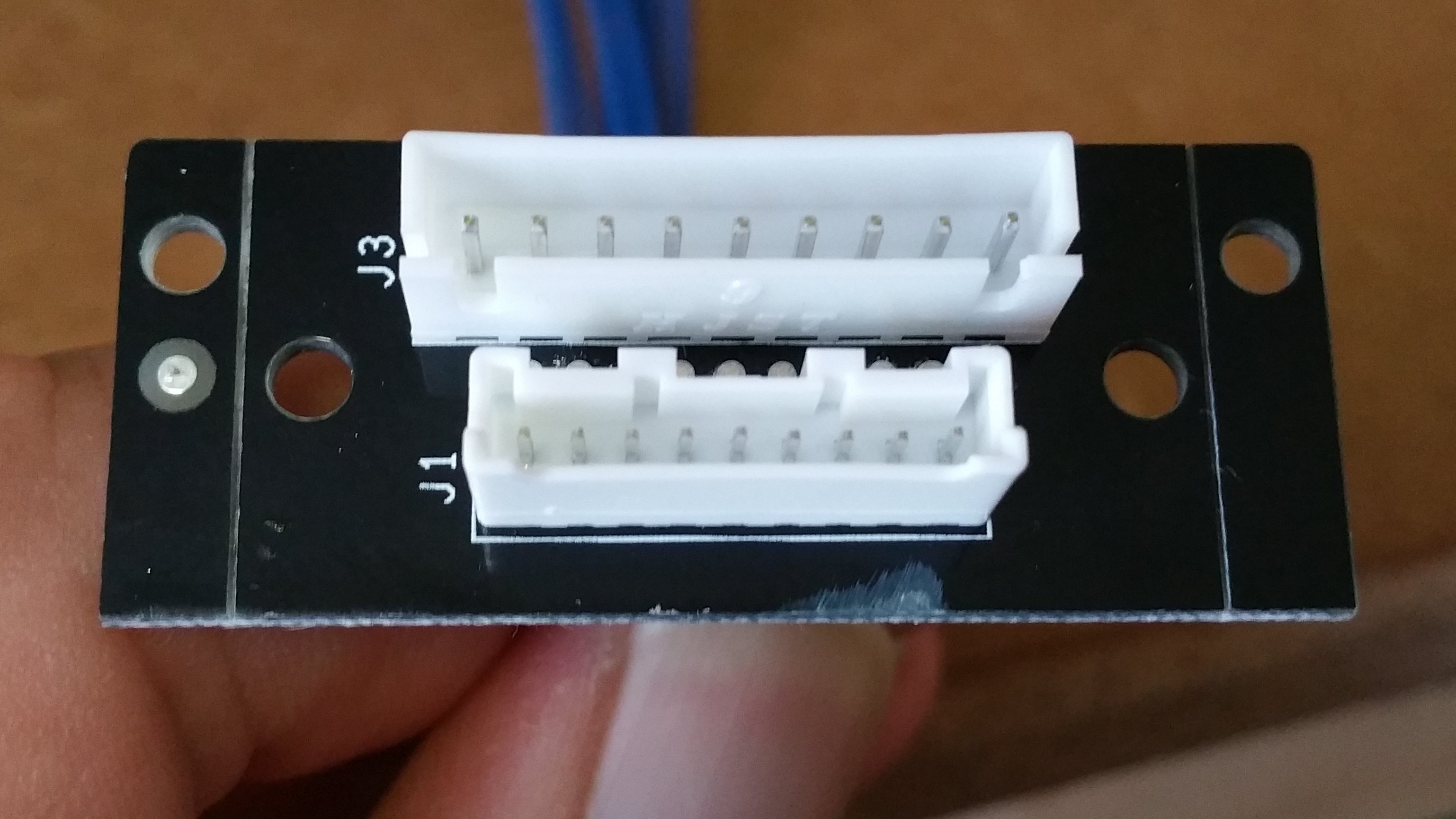

A small custom PCB that allows the use of Revolectrix MPA charge/balance board to be connected using Revos favoured JST-PA connector and the use of balance boards with the more common JST-XH connector style.
Supplied ready built, with a 6" lead to connect board to the balance port on the front of Revolectrix charger.
Supplied ready built, with a 6" lead to connect board to the balance port on the front of Revolectrix charger.
Price without discount£18.00

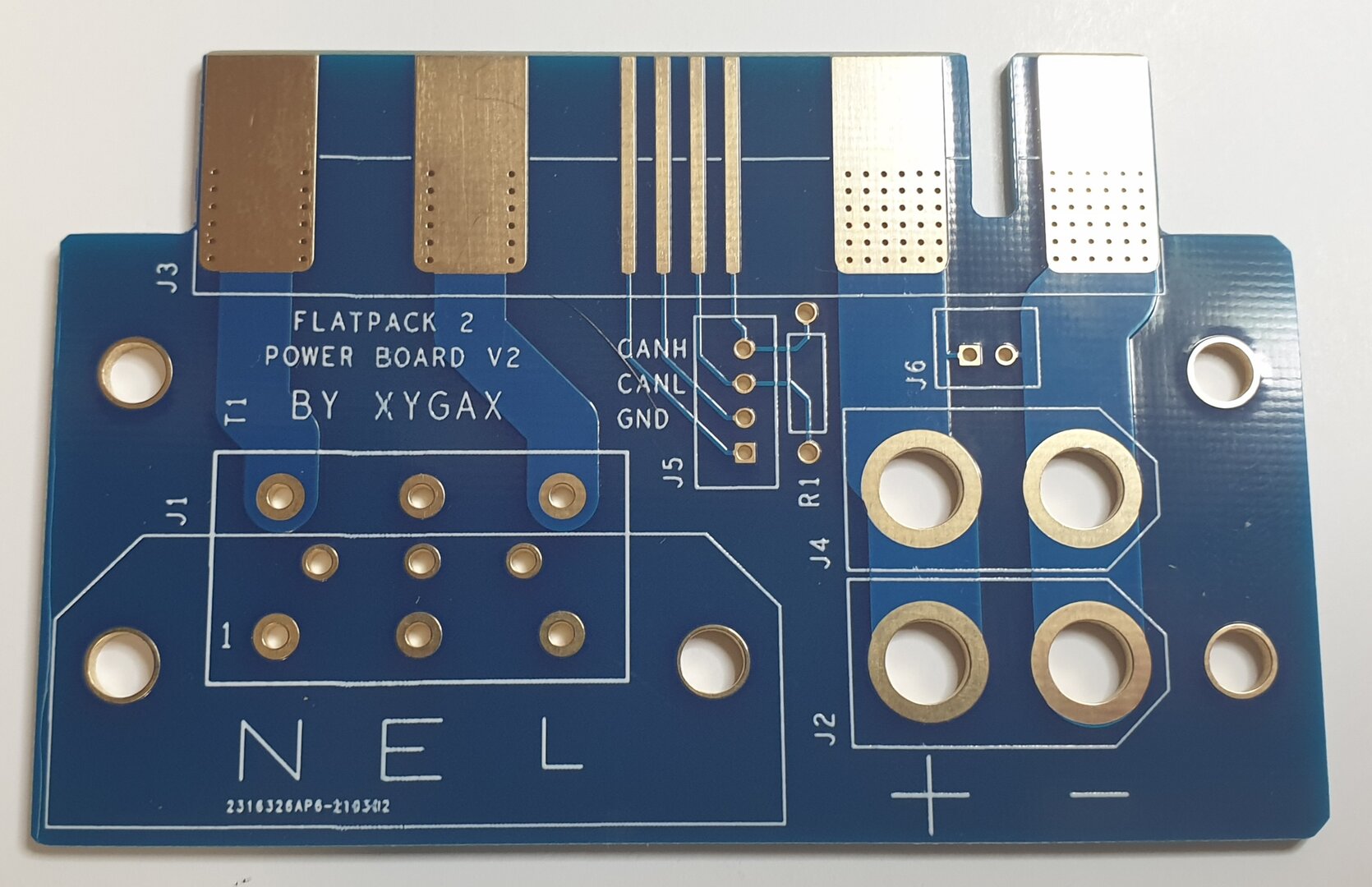

Here is my Eltek Flatpack 2 and S rectifier Power Boards.
This provides connection points for the AC input via IEC socket or 10mm barrier strip, then DC output via 2x XT90 connectors.
Also features connectors for the Canbus control points and 120 ohm termination resistor, which all pairs nicely with my CANnedIce controller to allow for programming of these units.
This provides connection points for the AC input via IEC socket or 10mm barrier strip, then DC output via 2x XT90 connectors.
Also features connectors for the Canbus control points and 120 ohm termination resistor, which all pairs nicely with my CANnedIce controller to allow for programming of these units.
Price without discount£10.00
Please enquiry about this connector.

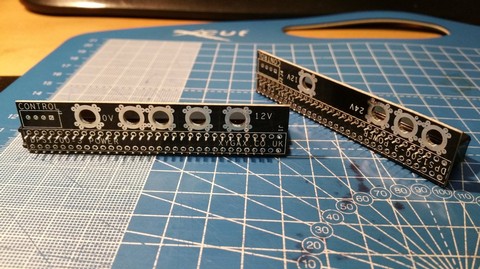

To compliment our PSU and case builds, we designed a power connector board to allow fast and simple connection to the PSU's edge connector strip. This removes the need to solder directly to the PSU, thus should one fail at any time, it is simply a matter of sliding the connector off from the downed unit.
Supplied in pairs for a 2x PSU (25 volt) setup.
To compliment our PSU and case builds, we designed a power connector board to allow fast and simple connection to the PSU's edge connector strip. This removes the need to solder directly to the PSU, thus should one fail at any time, it is simply a matter of sliding the connector off from the downed unit.
Supplied in pairs for a 2x PSU (25 volt) setup.
Price without discount£24.99

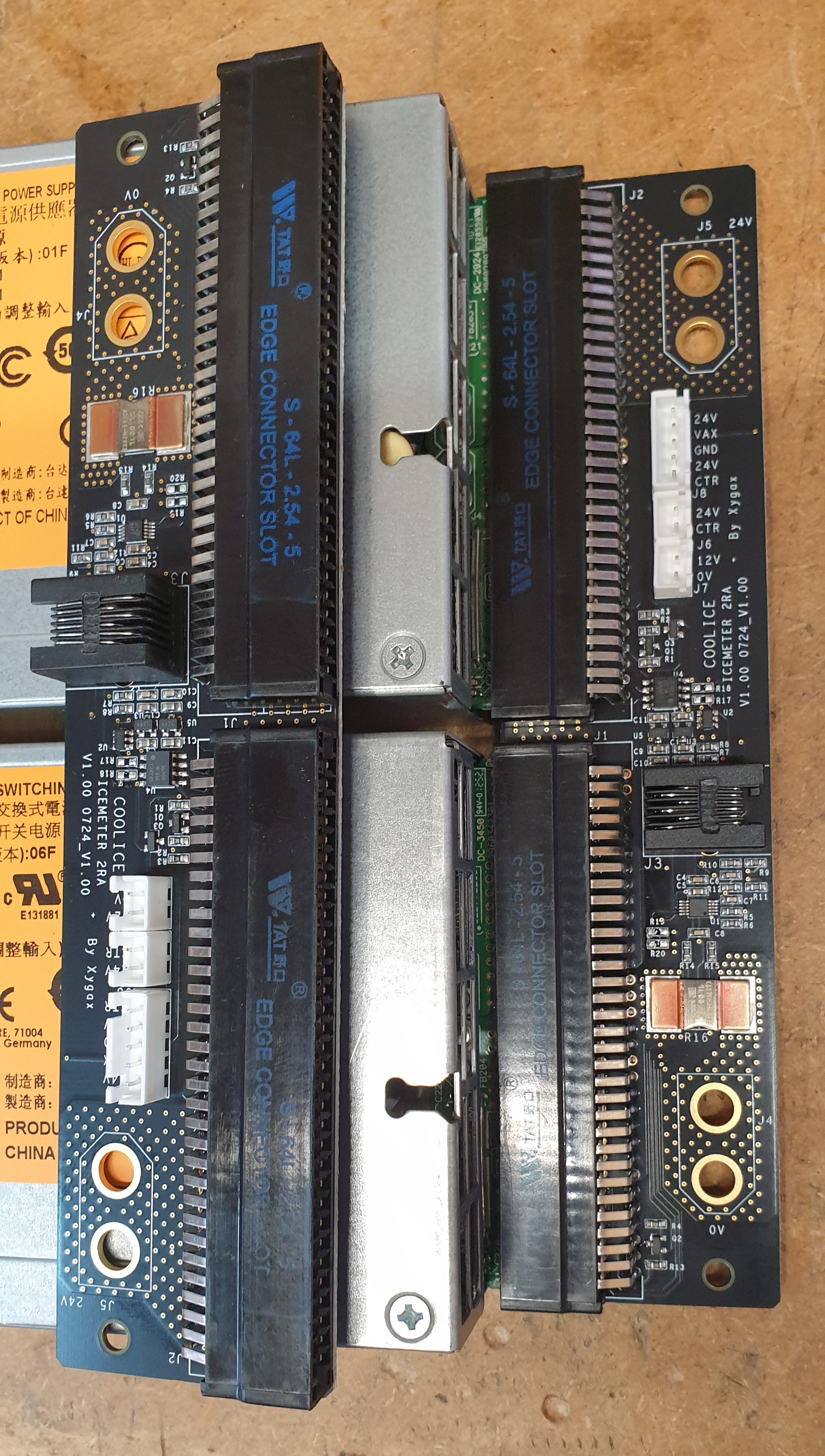

This is our IceMeter 2 Side By Side commonslot Power Board for use with the Icemeter 2 protection circuit
Price without discount£45.00

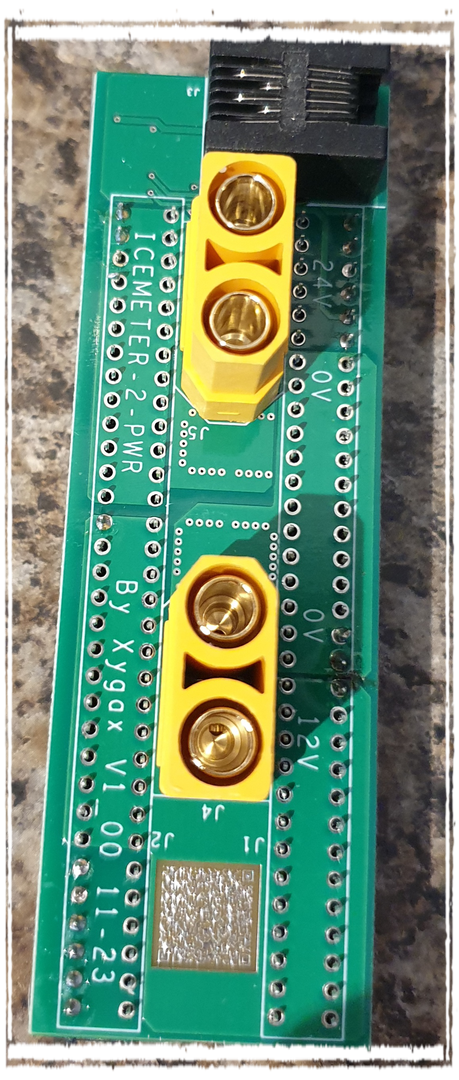

This is our IceMeter 2 Back 2 Back commonslot Power Board for use with the Icemeter 2 protection circuit
Price without discount£45.00

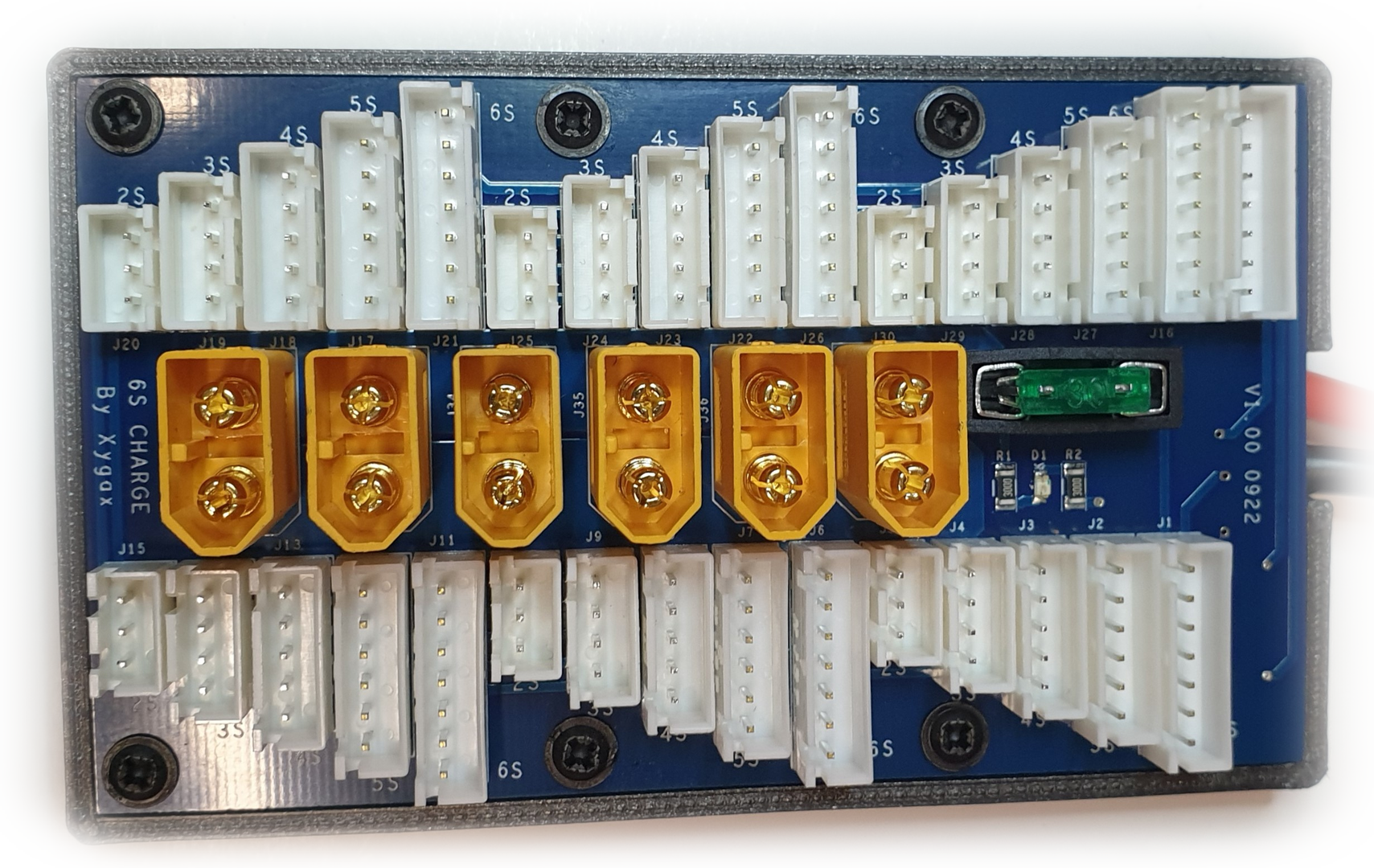

Here we have my custom designed parallel charge board for use in my charge cases, or as a standalone board with my 3D printed backing cover.
After a few years of buying pre-made boards from China for use in my charge cases, the worry about being able to get the exact same one to replace any damaged boards so that they fit in the same location caused some concern. So I had my electronics man Steve design this one for me, knowing that I could easily get more to the exact same specs as and when needed.
Featuring a 30 amp blade fuse on the main charge wires and seven self-ressetable polyfuses on the balance wires provides safety.
We have found some chargers perfer not to have the battery present LED in place, so this is removed now
After a few years of buying pre-made boards from China for use in my charge cases, the worry about being able to get the exact same one to replace any damaged boards so that they fit in the same location caused some concern. So I had my electronics man Steve design this one for me, knowing that I could easily get more to the exact same specs as and when needed.
Featuring a 30 amp blade fuse on the main charge wires and seven self-ressetable polyfuses on the balance wires provides safety.
We have found some chargers perfer not to have the battery present LED in place, so this is removed now
Price without discount£34.99

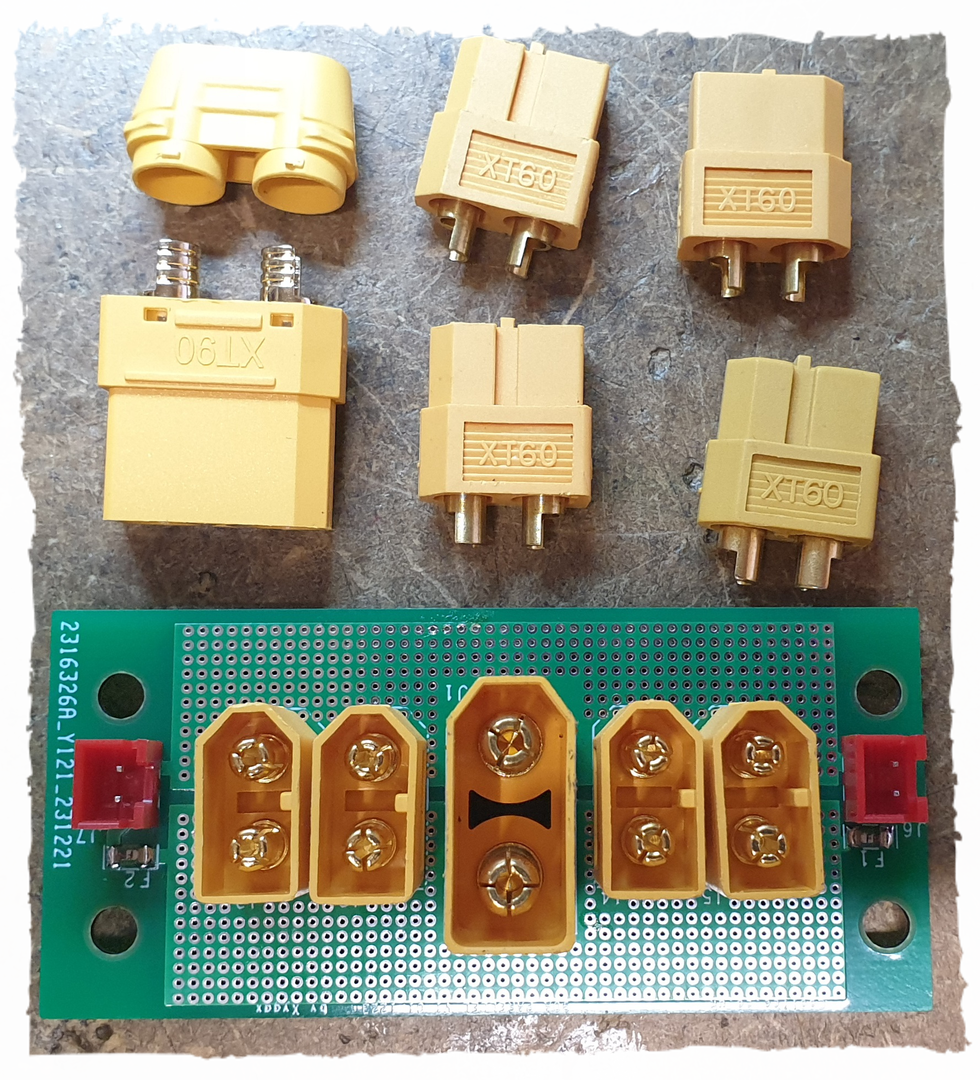

To simplify my wiring on multiple chargers case builds, another PCB was developed where-by I could have one XT90 input and two pairs of XT60 outputs on either side, plus two JST-XH 2 pin sockets for cooling fan hookup.
Supplied with 4x XT60 male and female connectors, 1x XT90 male and female connector and two JST-XH 2 pin sockets
Supplied with 4x XT60 male and female connectors, 1x XT90 male and female connector and two JST-XH 2 pin sockets
Price without discount£14.99
